Polarization Mode Dispersion (PMD) is one of the critical factors that can compromise the performance of optical transmission systems, especially in high-speed applications like telecommunications, data centers, and long-distance fiber optic communication. This phenomenon arises due to imperfections in the fiber, causing different polarization states of light to travel at different speeds. As a result, PMD can introduce signal distortion, impairing the integrity of the data transmitted over fiber optic cables. For professionals in the field of optical communications, minimizing PMD is paramount to maintaining signal fidelity and ensuring ultra-low loss in polarization-maintaining patch cables.
What You Need to Know About Polarization Mode Dispersion (PMD)
PMD occurs due to the birefringence inherent in optical fibers, where the refractive index for light propagating in two perpendicular polarization modes differs. This birefringence is often caused by slight asymmetries in the core, cladding, or the way the fiber is manufactured or laid. The result is that different polarization states of light travel at different speeds, causing them to become temporally dispersed as they propagate.
When this dispersion exceeds certain thresholds, the integrity of the transmitted signal degrades, resulting in bit errors, decreased signal-to-noise ratio, and overall performance degradation. The longer the fiber span, the more pronounced the PMD effect becomes, particularly in high-speed applications, where data rates exceed the capabilities of traditional fiber systems.

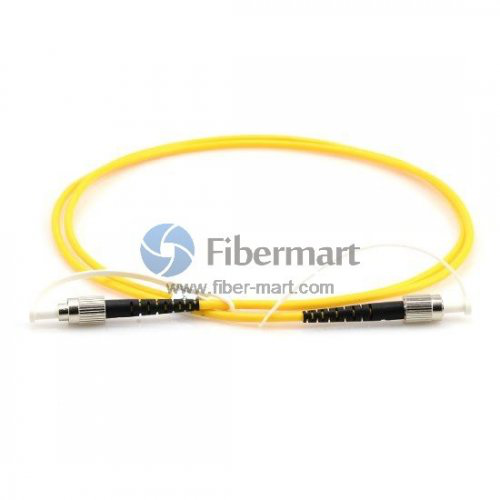

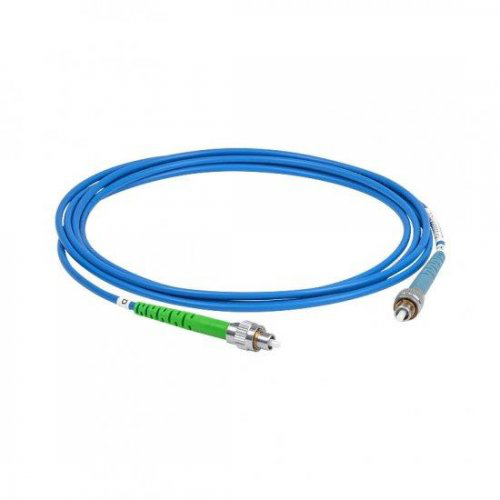

The Role of Fibermart’s Polarization-Maintaining (PM) Patch Cables
Polarization-maintaining (PM) patch cables are designed to preserve the polarization of light through the fiber. They have specialized constructions, including stress rods or special fiber geometries, that ensure one polarization mode is maintained over the transmission distance. This helps mitigate PMD by reducing the extent of birefringence and improving the overall stability of signal transmission.
However, even with PM fibers, PMD cannot be entirely eliminated. Consequently, it is crucial to address factors that can further reduce polarization-related dispersion and enhance the overall transmission quality.
Techniques for Minimizing PMD in PM Patch Cables
1. Careful Fiber Design and Manufacturing Process
The foundation for reducing PMD begins with the fiber itself. Advances in fiber design have significantly reduced the levels of birefringence. One key approach is ensuring the core and cladding of the fiber are precisely manufactured to minimize asymmetries that cause polarization mismatches.
- Reduced Geometrical Variations: Tighter control over the fiber’s geometry during manufacturing, such as the core diameter and the cladding’s uniformity, reduces the potential for PMD.
- Stress-rod Optimization: In PM fibers, stress rods are used to impose birefringence. Fine-tuning their placement and the materials used can help to control the level of birefringence more effectively.
- New Materials: Using advanced glass or polymer-based materials with more consistent refractive indices can minimize polarization distortion. Recent research in specialty fiber materials has shown that using non-silica-based fibers can further reduce the birefringence effects.
2. Improved Cable Assembly Techniques
Beyond the fiber itself, the assembly process of PM patch cables also plays a crucial role in minimizing PMD. Proper handling during the splicing and installation processes ensures that the polarization state is not inadvertently disturbed.
- Precision Splicing: Using precision splicing techniques that align the polarization axes of the fibers and avoid introducing stress points is critical. This ensures that the fibers in the cable remain properly aligned and do not introduce unnecessary polarization distortions.
- Optical Connector Quality: The connectors used in PM patch cables must also be high-quality, as misalignment of connectors can lead to polarization mismatch. Using specialized polarization-maintaining connectors ensures that light remains in the correct polarization mode as it transitions from one fiber to another.
3. Optimized Fiber Installation Practices
The environment in which PM fibers are installed has a significant impact on PMD. Mechanical stress, bending, and improper handling can all introduce distortions in polarization and increase PMD. For high-performance systems, following best practices during installation is essential.
- Avoiding Excessive Bending: Fiber optic cables, including PM fibers, should not be bent beyond their recommended bend radius. Excessive bending can induce stress that alters the polarization properties of the light. Using cable trays and organizing cables with proper slack helps prevent this issue.
- Minimizing Stress During Installation: Mechanical stress during cable deployment, such as pulling forces, can distort the polarization-maintaining properties of the fiber. Using proper cable management tools and training installers to handle cables carefully ensures minimal stress.
4. Temperature and Environmental Control
The performance of polarization-maintaining fibers can also be influenced by environmental factors such as temperature fluctuations, humidity, and pressure changes. Such variations can lead to changes in the refractive index profile, thus affecting the polarization modes.
- Temperature Compensation: Advanced polarization-maintaining fibers often incorporate designs that compensate for thermal expansion, reducing the potential for polarization shifts due to temperature changes. Using fibers with a low temperature coefficient of expansion can help ensure consistent performance.
- Environmental Protection: Protective coatings and jackets that shield fibers from external environmental stresses further ensure that PMD remains minimized, especially in harsh outdoor or industrial settings.
5. Advanced PMD Compensation Techniques
For systems where PMD cannot be fully eliminated, compensation techniques can be employed to mitigate its impact. These techniques involve dynamically adjusting the signal to counteract the effects of PMD.
- Digital PMD Compensation: Digital signal processing (DSP) techniques can be used at the transmitter or receiver end to compensate for the effects of PMD. By monitoring the polarization states and adjusting accordingly, it is possible to correct for temporal dispersion in real-time.
- Active Fiber Devices: Active fiber components, such as polarization controllers and optical switches, can be used to correct for changes in polarization state during transmission. These devices provide dynamic adjustments that can help maintain high-quality signal transmission.
Achieving Ultra-Low Loss in Polarization-Maintaining Patch Cables
To ensure ultra-low loss in PM patch cables, achieving minimal PMD is only part of the solution. Losses due to attenuation, scattering, and connector mismatches must also be addressed.
- Low-Attenuation Fibers: Using fibers with lower attenuation rates is essential for reducing signal loss. This can be achieved by using high-purity glass and minimizing impurities that cause scattering.
- High-Quality Connectors: Minimizing insertion loss through the use of high-precision connectors is crucial. Gold-plated or ceramic ferrules in connectors provide a stable, low-loss connection that helps maintain signal strength.
- Optimized Cable Lengths: Minimizing the length of PM patch cables between components can reduce the total loss over the entire system. Efficient cable routing, as well as choosing the right cable lengths based on the network design, further reduces loss.
To learn more about how you can optimize your PM patch cables and reduce PMD, reach out to Fibermart—your trusted partner for high-quality fiber optic solutions.
Fibermart provides industry-leading polarization-maintaining patch cables engineered to the highest standards of axis alignment, insertion loss, and environmental reliability. Whether for laboratory-grade quantum setups or field-deployed optical systems, the company ensures optimal polarization fidelity and minimal PMD across all configurations.
